Garrett GTX5533R Turbocharger 94mm (aka GTX55-94) w/ TiAL Stainless V-Band Turbine Housing
Garrett GTX5533R Turbocharger 94mm (aka GTX55-94) w/ TiAL Stainless V-Band Turbine Housing
Garrett GTX5533R Turbocharger 94mm (aka GTX55-94) w/ TiAL Stainless V-Band Turbine Housing
Garrett GTX5533R Turbocharger 94mm (aka GTX55-94) w/ TiAL Stainless V-Band Turbine Housing

Garrett GTX5533R Turbocharger 94mm (aka GTX55-94) w/ TiAL Stainless V-Band Turbine Housing

Regular price
$3,299.99
Sale price
$3,299.99

PRODUCT DESCRIPTION:

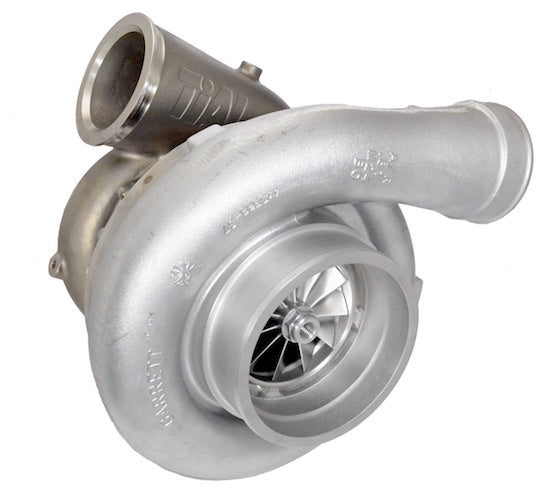

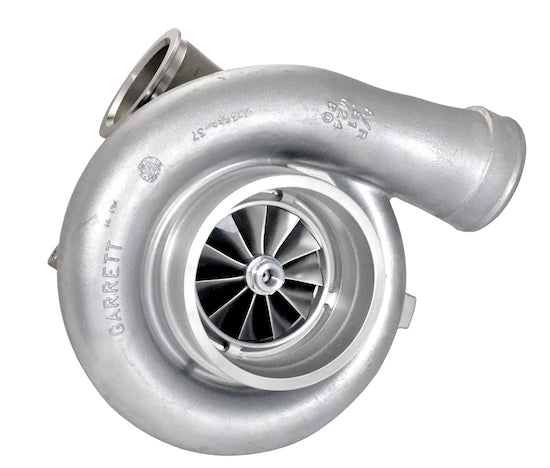

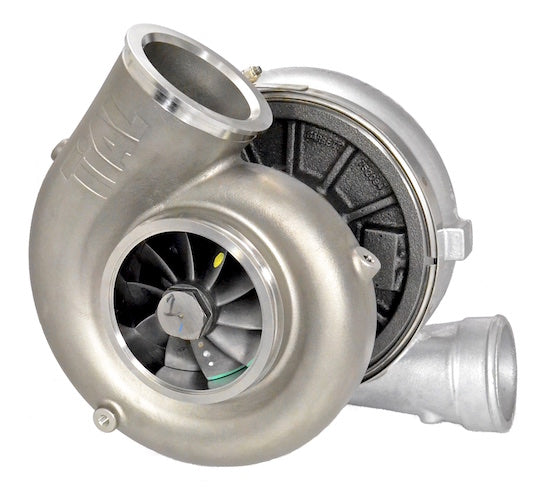

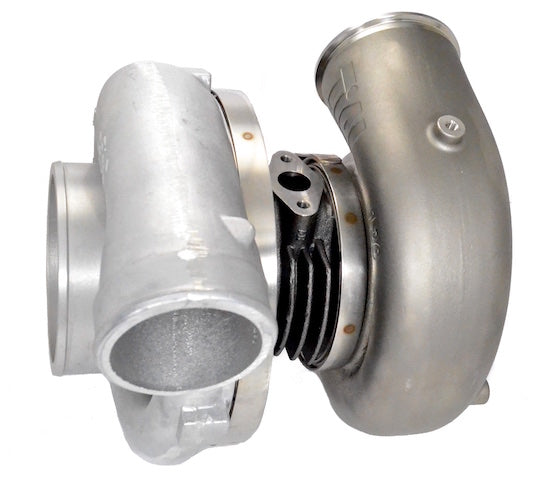

Garrett GTX5533R (94mm) also known as the "GTX55-94", dual ball bearing turbocharger with a 1.30 A/R TiAL Stainless Steel V-Band Inlet and V-Band Outlet Turbine Housing. The Ultra High Flow Garrett GTX 94mm Turbo which supports over 1800HP+ and designed for race classes limited to a 94mm compressor wheel inducer.

PRODUCT FEATURES:
  • Ultra high flow Garrett GTX 94mm forged billet aluminum compressor wheel
  • Designed for race classes limited to a 94mm compressor wheel inducer
  • Direct Drop-in upgrade for an existing Garrett GT55 turbo setup
  • Oil cooled bearing housing (no water ports)
  • Dual ball bearing CHRA rotating assembly


  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 93.8mm
  • Compressor Wheel Exducer: 133.3mm
  • Compressor Wheel Trim: 50
  • Compressor Housing: 0.81 A/R, 5.5" Inlet, and 3.5" Hose Connection Compressor Outlet
  • Turbine Wheel Inducer: 112mm
  • Turbine Wheel Exducer: 102mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: 1.30 A/R, 3.5" V-Band Inlet and 4.5" V-Band Outlet
