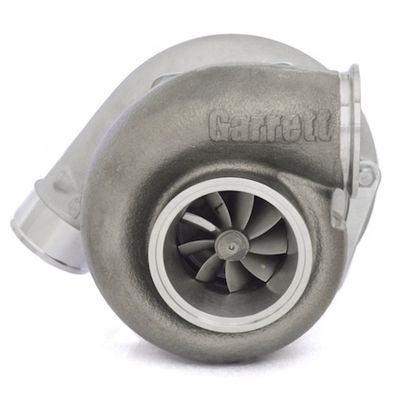

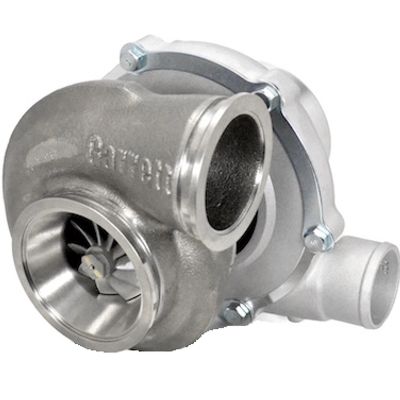

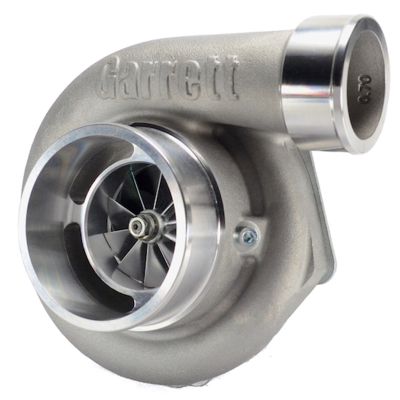

Garrett GTX3582R TurboCharger with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing
Garrett GTX3582R TurboCharger with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing
Garrett GTX3582R TurboCharger with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing

Garrett GTX3582R TurboCharger with 1.01 A/R Garrett Undivided V-band Entry Turbine Housing

Regular price
$2,299.99
Sale price
$2,299.99

PRODUCT DESCRIPTION:
Garrett GEN2 GTX3582R dual ball bearing turbocharger. Advanced GEN2 billet compressor wheel capable of 850HP!

The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.


PRODUCT FEATURES:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly



  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 66mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.70, T04S Frame: 4" in / 2.5" out
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84



  • TURBINE HOUSING OPTIONS:
  • Ni-Resist V-Band Inlet & Outlet. Available in .61, .83 or 1.01 A/R
